Upgrade di Apache dalla versione 2.2 alla 2.4+ in Spiceworks

da Raffaele Chiatto | Dic 14, 2021

Spiceworks è una potente soluzione dedicata alle aziende che consente a chi si occupa del reparto IT di poter tenere sempre sotto controllo tutti i computer connessi all’interno della rete aziendale. Tutti coloro che utilizzeranno questa soluzione potranno, quindi, monitorare e gestire le reti aziendali, siano esse di piccole che di grandi dimensioni. I responsabili del reparto IT di un’azienda potranno rilevare problemi ed effettuare alcune tipologie di interventi mirati.

Spiceworks interromperà il supporto per questa app dopo Dicembre 2021

Quindi o si passa all’app Cloud denominata Help Desk Server oppure siamo costretti ad aggiornare la versione di Apache con cui Spiceworks gira.

Infatti la versione di Apache con cui gira Spiceworks 7.5 è di Gennaio 2018 quindi molto datata…

Di seguito un tutorial abbastanza lungo che vi permetterà però di mantenere l’installazione On Premise di Spiceworks senza rinunciare alla sicurezza che l’ultima versione di Apache ci può offrire

PREREQUISITI

Versione di Windows Server: 2016 o 2019
Versione di Spiceworks: 7.5.00107
Versione di Apache: Apache/2.2.46 (Win64)

VERIFICA DELLA VERSIONE DI APACHE INSTALLATA

Per verificare la versione di Apache installata su Windows aprire una console DOS quindi digitare il comando:

C:\Program Files\[Apache directories]\bin\httpd.exe" -v

0	C:\Program Files\[Apache directories]\bin\httpd.exe" -v

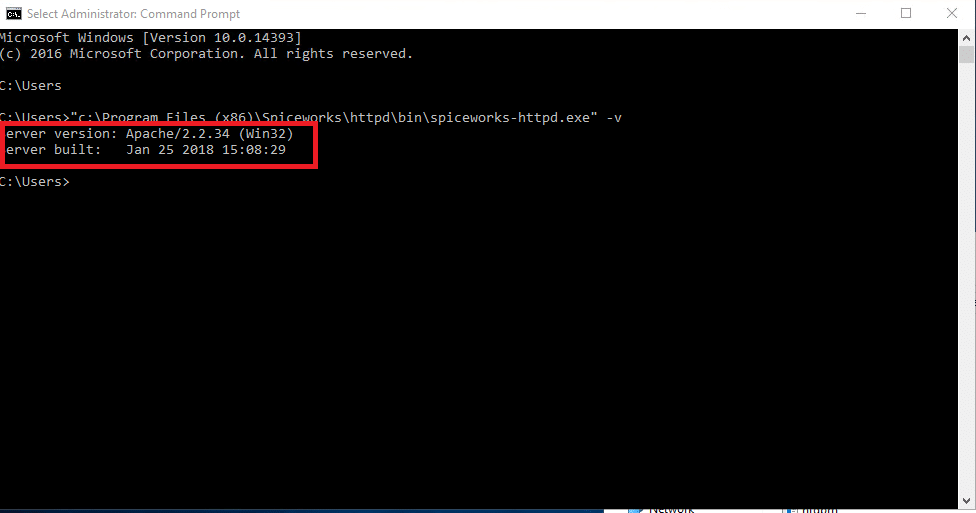

Dovremmo vedere come mostrato nell’immagine sovrastante la versione di Apache installata

Server version: Apache/2.2.34 (Win32)
Server built: Jan 25 2018 15:08:29

Nel mio caso la versione di Apache installata è: Apache 2.2.34 (Win32)

DOWNLOAD DELL’ULTIMA VERSIONE DI VISUAL C++ 2015 REDISTRIBUTABLE

Per scaricare l’ultima versione di Microsoft Visual C++ 2015 Redistributable andare al seguente link

https://www.microsoft.com/en-US/download/details.aspx?id=52685

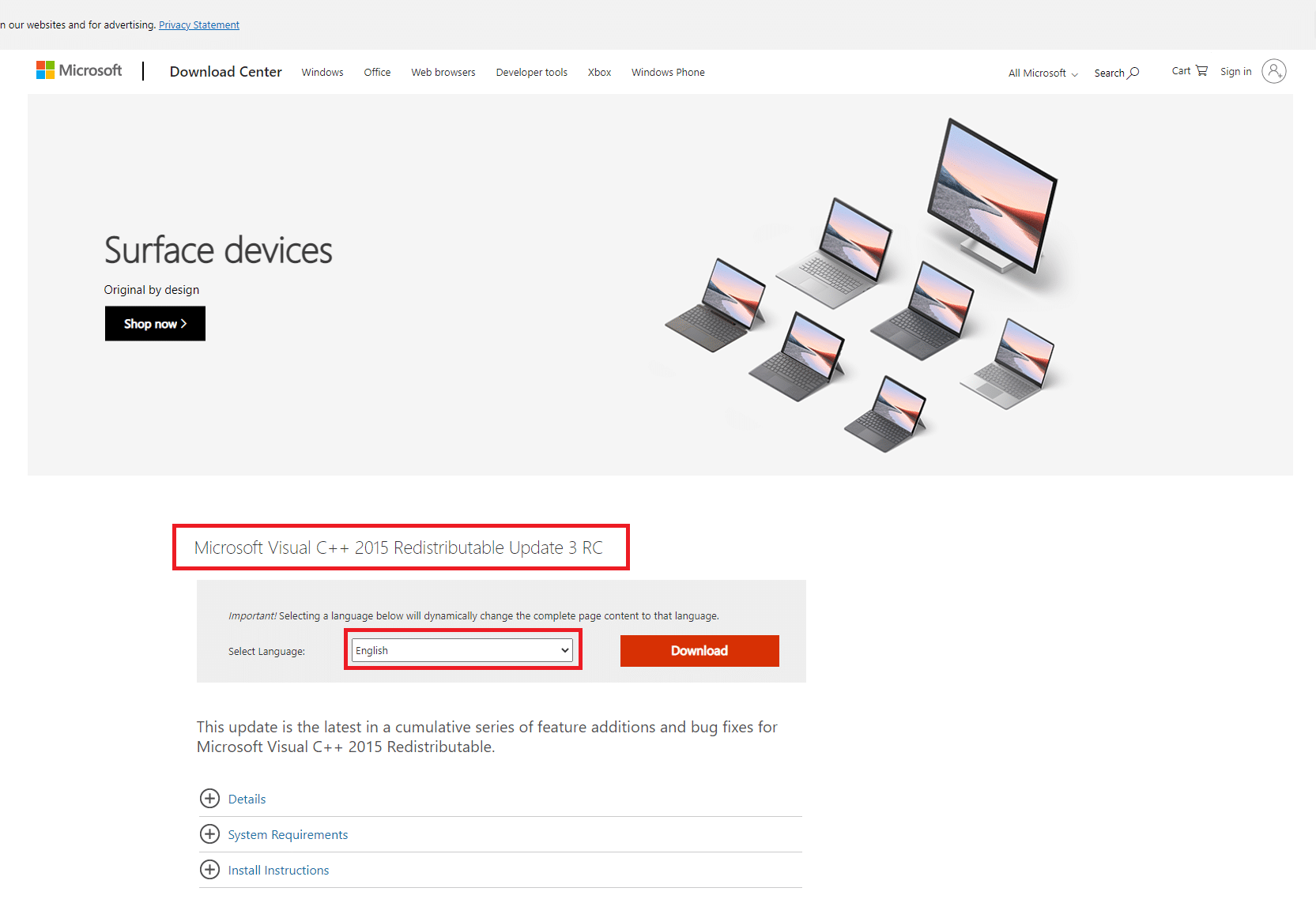

Selezionare la lingua quindi cliccare Download

Selezionare la versione compatibile con il nostro OS quindi cliccare Next

NOTA BENE: Scaricare la versione a 32bit e quindi il file vc_redist.x86.exe

DOWNLOAD DELL’ULTIMA VERSIONE DI APACHE STABILE

Per scaricare l’ulitma versione stabile di Apache andare al seguente link

https://httpd.apache.org/download.cgi#apache24

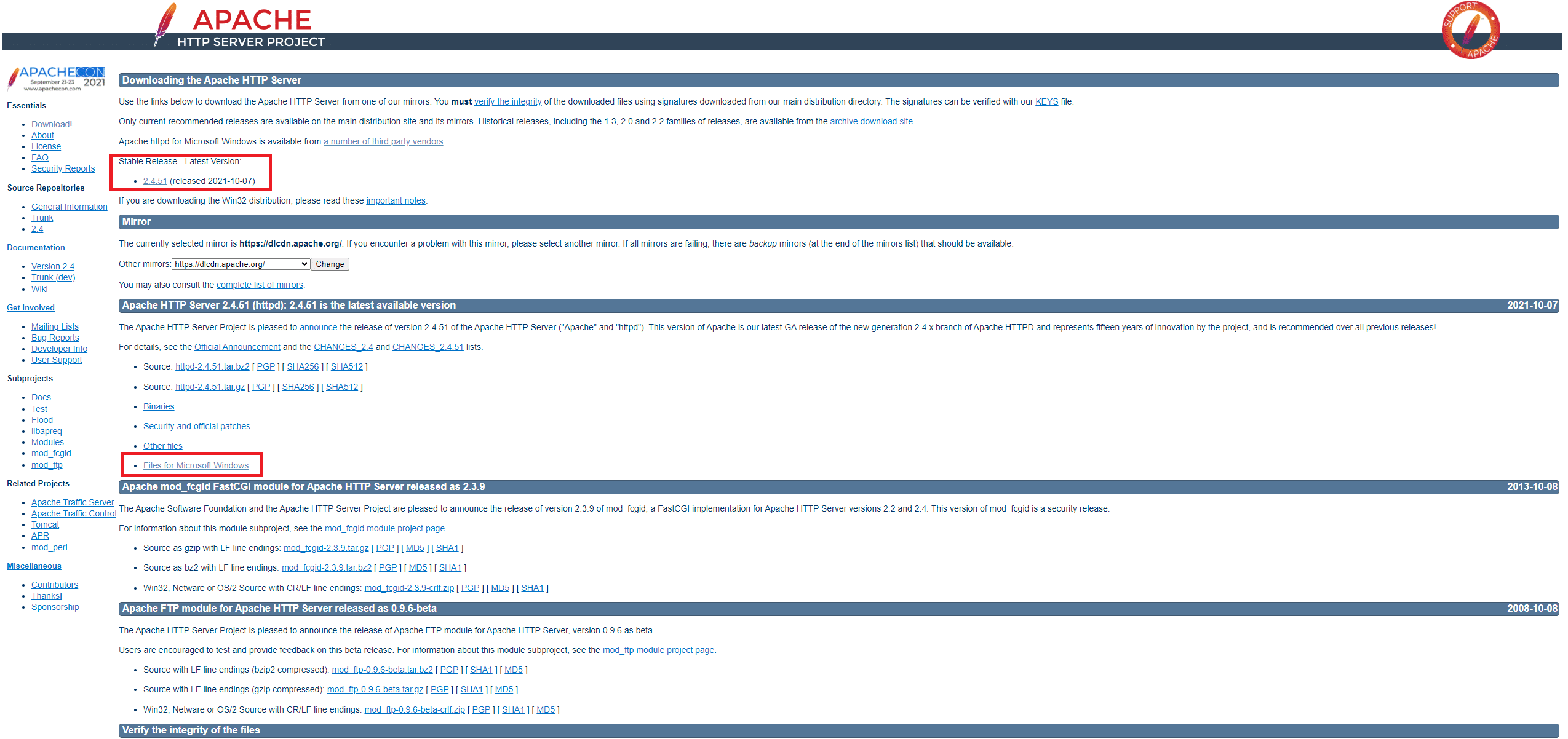

Verificare l’ultima versione stabile (al momento della stesura di questo articolo la versione stabile disponibile è la 2.4.51) quindi cliccare su Files for Microsoft Windows

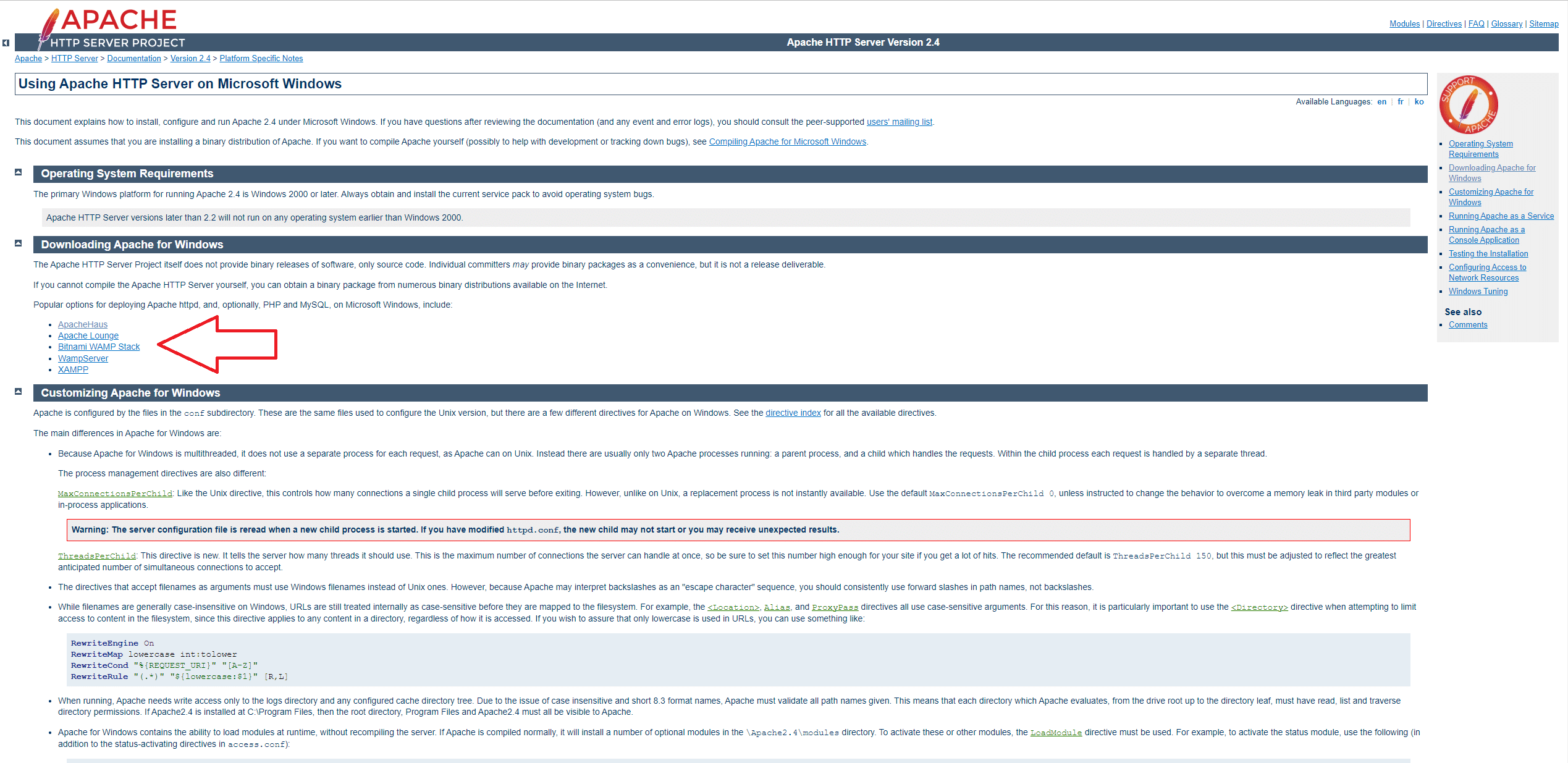

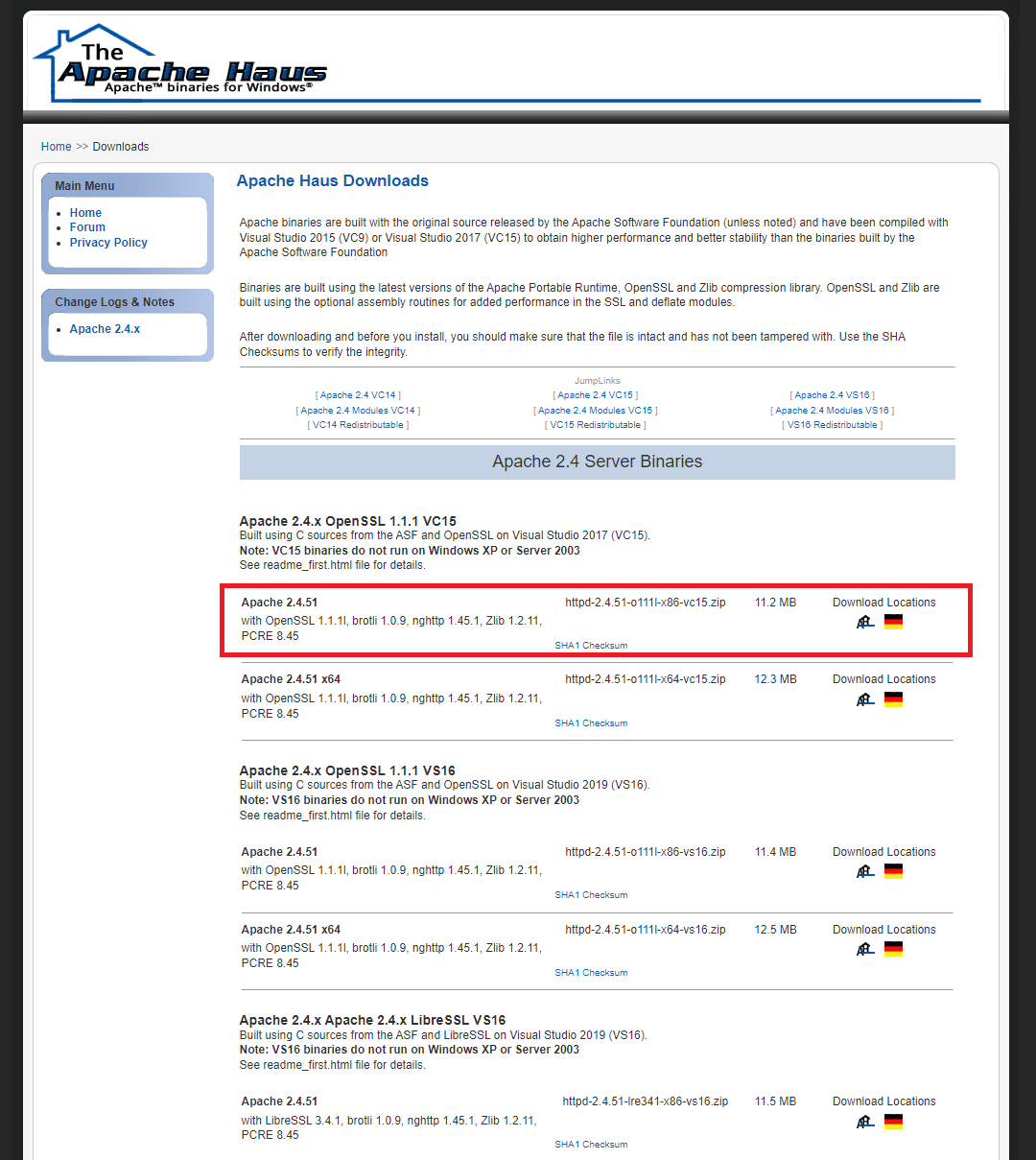

Cliccare quindi su ApacheHaus come mostrato nell’immagine sovrastante

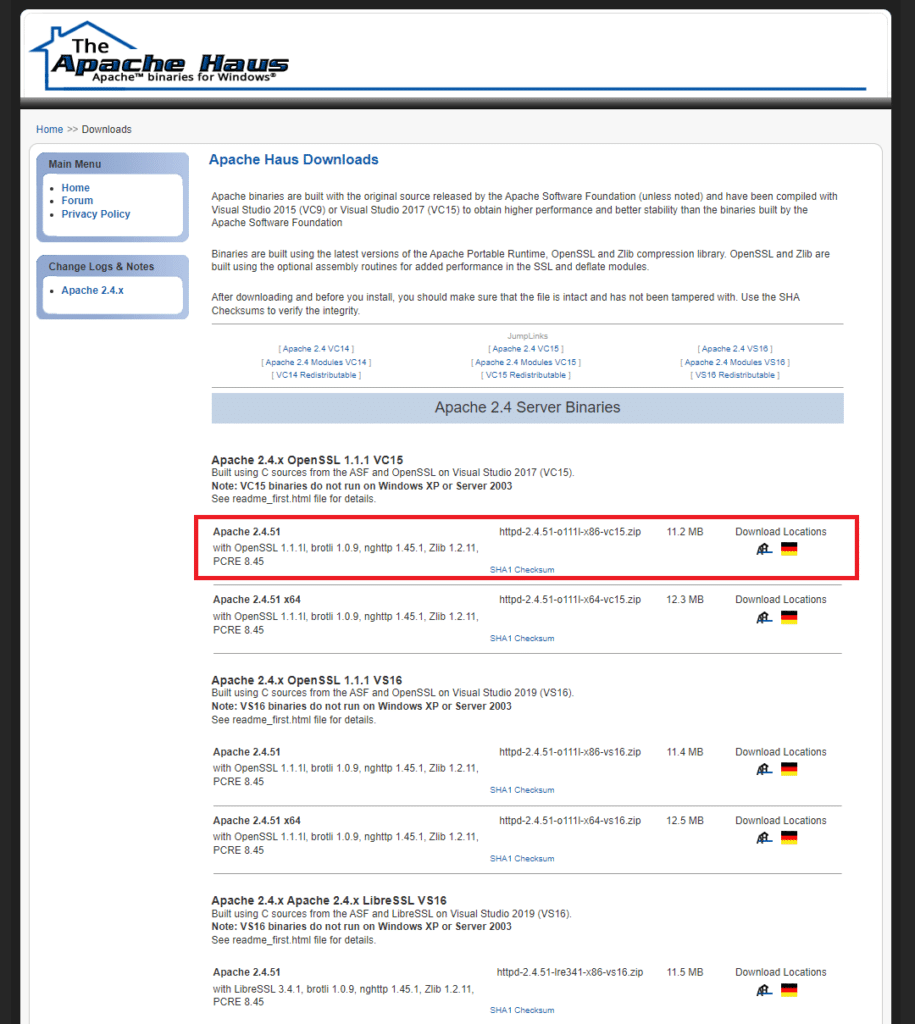

Scaricare la versione a 32 bit come evidenziato nell’immagine sovrastante e quindi il file httpd-2.4.51-o111l-x86-vc15.zip

Dopo aver terminato il download scompattare il file .zip

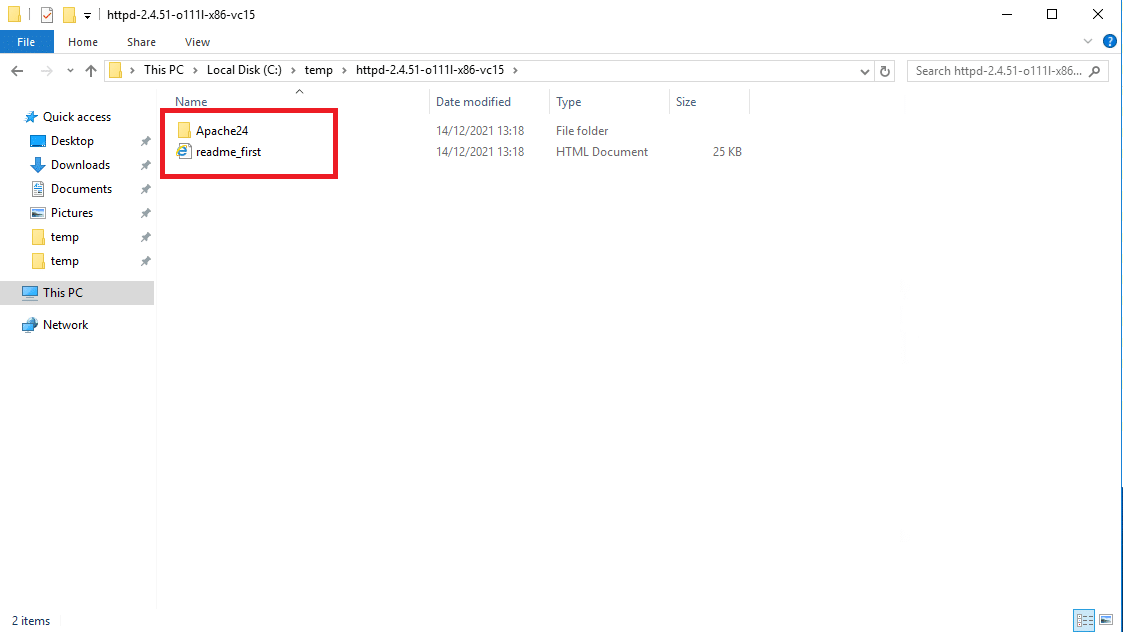

Se è tutto coreetto dovremmo vedere all’interno della cartella httpd-2.4.51-o111l-x86-vc15 i seguenti oggetti:

Cartella Apache24
File readme_first.html

INSTALLAZIONE DI VISUAL C++ 2015 REDISTRIBUTABLE

Procedere con l’installazione dell’eseguibile vc_redist.x86.exe

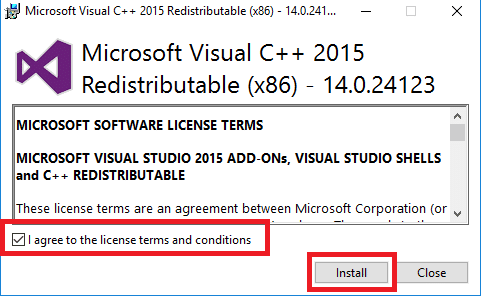

Accettare l’EULA quindi cliccare su Install

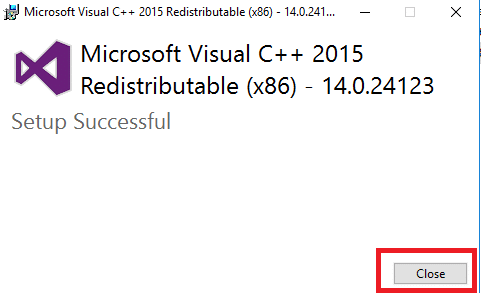

Cliccare Close per terminare l’installazione

AGGIORNAMENTO DI APACHE

Prima di procedere con l’aggiornamento creare una copia della cartella C:\Program Files (x86)\Spiceworks\httpd chiamandola C:\Program Files (x86)\Spiceworks\httpd-OLD

Copiare la cartella Apache24 scompattata precedentemente all’interno di un path semplice (in questo tutorial la cartella è stata copiata in C:\temp\Apache24)

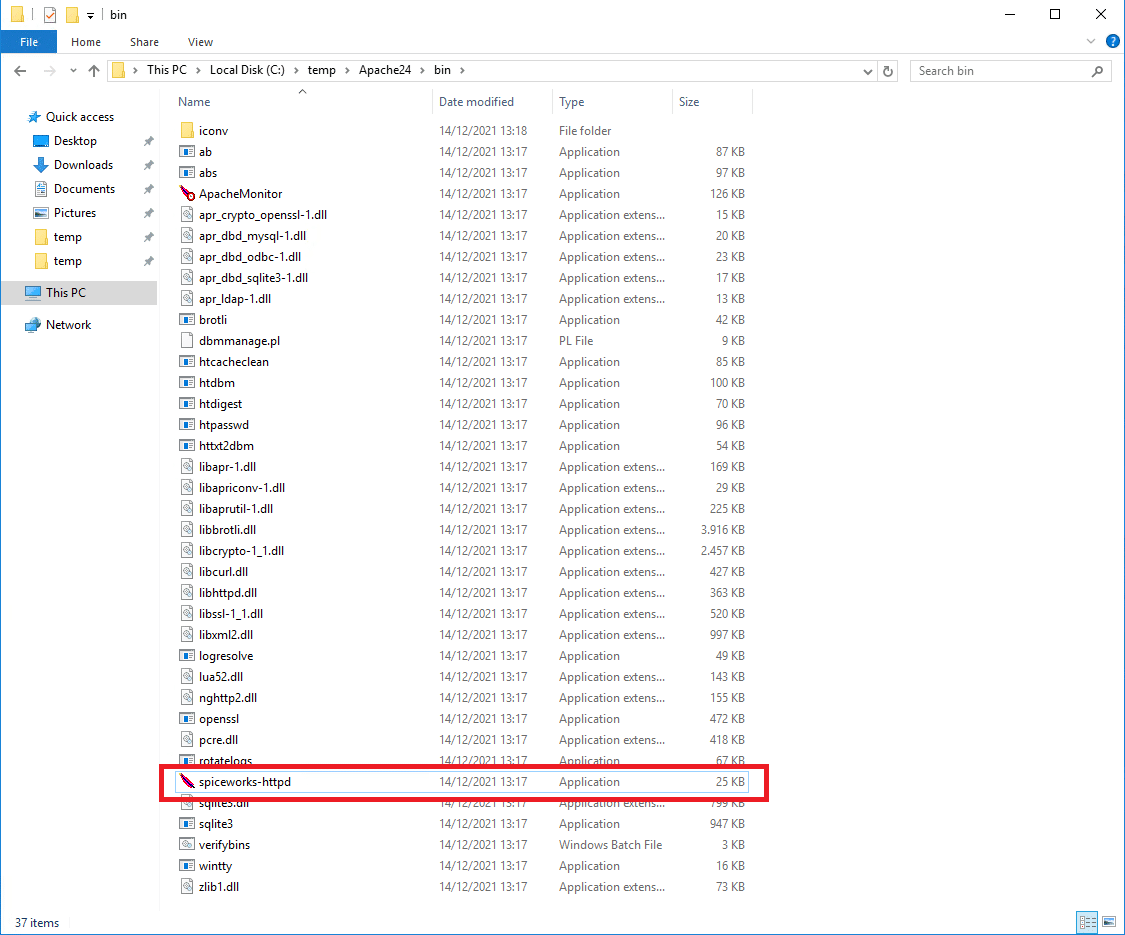

Rinominare quindi il file Apache24\bin\httpd.exe in Apache24\bin\spiceworks-httpd.exe

Dovremmo vedere una schermata come quella sovrastante

Copiare quindi il file httpd.conf da C:\Program Files (x86)\Spiceworks\httpd\conf\ all’interno della cartella C:\temp\Apache24\conf\

DOWNLOAD DEL PLUGIN MOD LOG ROTATE PER APACHE 2.4.X

Per scaricare la versione compatibile con apache 2.4.x del plugin Mod Log Rotate andare al seguente link

https://www.apachehaus.com/cgi-bin/download.plx

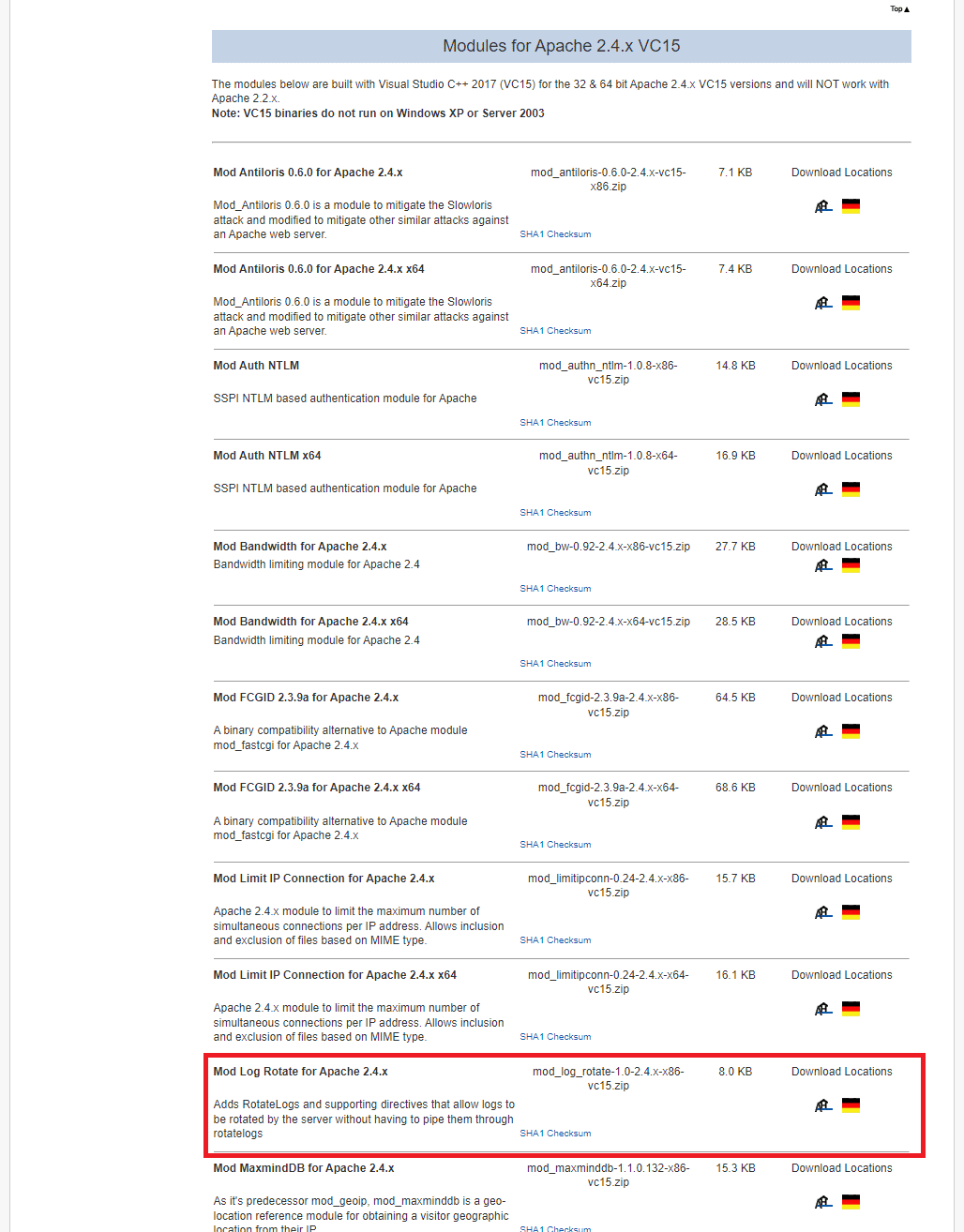

Nella sezione Modules for Apache 2.4.x VC15 individuare il pacchetto Mod Log Rotate for Apache 2.4.x quindi procedere al download come mostrato nell’immagine sovrastante

Scompattare il file appena scaricato mod_log_rotate-1.0-2.4.x-x86-vc15.zip

Quindi copiare il file mod_log_rotate.so all’interno della cartella C:\temp\Apache24\modules

MERGE DELLE CARTELLE HTTPD DI APACHE

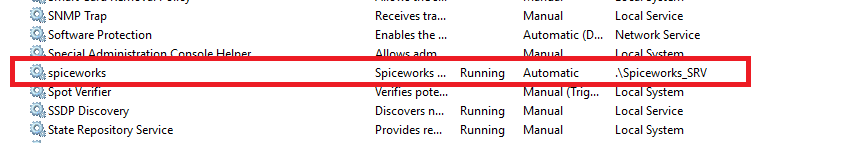

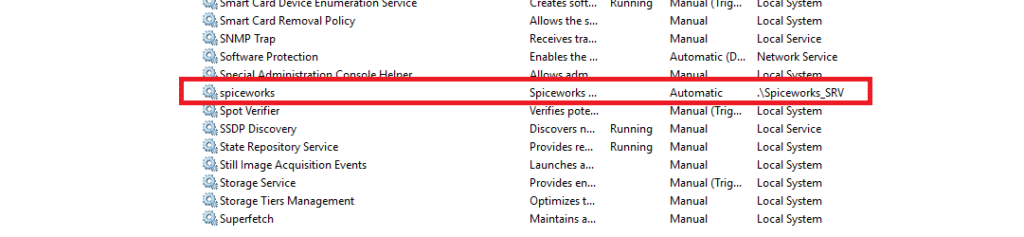

Procedere con lo spegnimento di Spiceworks stoppando il servizio spiceworks

Dovremmo vedere una schermata come quella sovrastante con il servizio in STOP

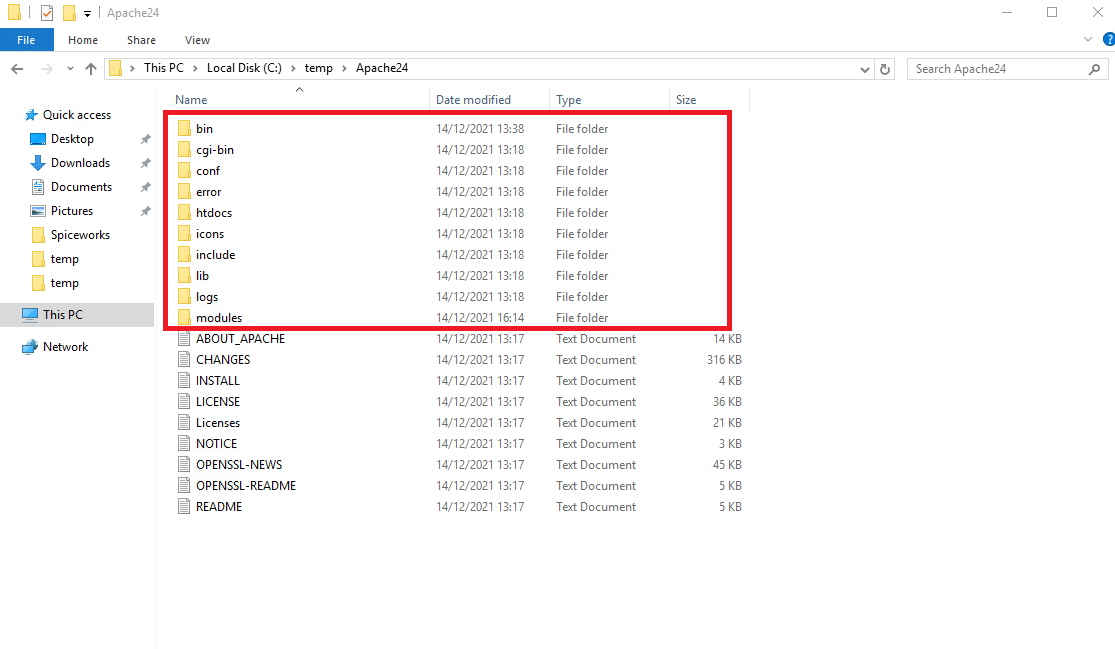

Aprire la cartella C:\temp\Apache24 quindi selezionare tutte le cartelle

Seleizonarle tutte quindi copiarle nella cartella C:\Program Files (x86)\Spiceworks\httpd

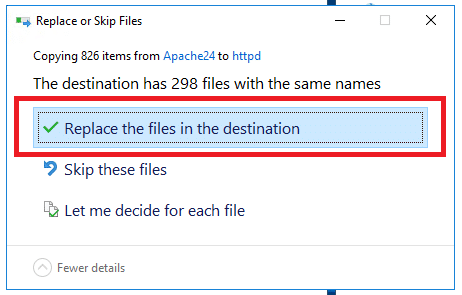

Cliccare su Replace the files in the destination per confermare le modifiche

CONFIGURAZIONE DEL FILE HTTPD.CONF CON APACHE 2.4

Aprire il file httpd.conf all’interno della cartella C:\Program Files (x86)\Spiceworks\httpd

Cancellare tutto il contenuto quindi incollare il listato seguente:

#
# This is the main Apache HTTP server configuration file. It contains the
# configuration directives that give the server its instructions.
# See <URL:http://httpd.apache.org/docs/2.4/> for detailed information.
# In particular, see
# <URL:http://httpd.apache.org/docs/2.4/mod/directives.html>
# for a discussion of each configuration directive.
#
# Do NOT simply read the instructions in here without understanding
# what they do. They're here only as hints or reminders. If you are unsure
# consult the online docs. You have been warned.
#
# Configuration and logfile names: If the filenames you specify for many
# of the server's control files begin with "/" (or "drive:/" for Win32), the
# server will use that explicit path. If the filenames do *not* begin
# with "/", the value of ServerRoot is prepended -- so "logs/access_log"
# with ServerRoot set to "/usr/local/apache2" will be interpreted by the
# server as "/usr/local/apache2/logs/access_log", whereas "/logs/access_log"
# will be interpreted as '/logs/access_log'.
#
# NOTE: Where filenames are specified, you must use forward slashes
# instead of backslashes (e.g., "c:/apache" instead of "c:\apache").
# If a drive letter is omitted, the drive on which httpd.exe is located
# will be used by default. It is recommended that you always supply
# an explicit drive letter in absolute paths to avoid confusion.

#
# ServerRoot: The top of the directory tree under which the server's
# configuration, error, and log files are kept.
#
# Do not add a slash at the end of the directory path. If you point
# ServerRoot at a non-local disk, be sure to specify a local disk on the
# Mutex directive, if file-based mutexes are used. If you wish to share the
# same ServerRoot for multiple httpd daemons, you will need to change at
# least PidFile.
#

Define SRVROOT "C:/Program Files (x86)/Spiceworks/httpd"
ServerRoot "${SRVROOT}"

#
# Mutex: Allows you to set the mutex mechanism and mutex file directory
# for individual mutexes, or change the global defaults
#
# Uncomment and change the directory if mutexes are file-based and the default
# mutex file directory is not on a local disk or is not appropriate for some
# other reason.
#
# Mutex default:logs

#
# Listen: Allows you to bind Apache to specific IP addresses and/or
# ports, instead of the default. See also the <VirtualHost>
# directive.
#
# Change this to Listen on specific IP addresses as shown below to
# prevent Apache from glomming onto all bound IP addresses.
#
#Listen 12.34.56.78:80
Listen 127.0.0.1:80
Listen 443 https

#
# Dynamic Shared Object (DSO) Support
#
# To be able to use the functionality of a module which was built as a DSO you
# have to place corresponding `LoadModule' lines at this location so the
# directives contained in it are actually available _before_ they are used.
# Statically compiled modules (those listed by `httpd -l') do not need
# to be loaded here.
#
# Example:
# LoadModule foo_module modules/mod_foo.so
#
#LoadModule access_compat_module modules/mod_access_compat.so
LoadModule actions_module modules/mod_actions.so
LoadModule alias_module modules/mod_alias.so
LoadModule allowmethods_module modules/mod_allowmethods.so
LoadModule asis_module modules/mod_asis.so
LoadModule auth_basic_module modules/mod_auth_basic.so
#LoadModule auth_digest_module modules/mod_auth_digest.so
#LoadModule auth_form_module modules/mod_auth_form.so
#LoadModule authn_anon_module modules/mod_authn_anon.so
LoadModule authn_core_module modules/mod_authn_core.so
#LoadModule authn_dbd_module modules/mod_authn_dbd.so
#LoadModule authn_dbm_module modules/mod_authn_dbm.so
LoadModule authn_file_module modules/mod_authn_file.so
#LoadModule authn_socache_module modules/mod_authn_socache.so
#LoadModule authnz_fcgi_module modules/mod_authnz_fcgi.so
#LoadModule authnz_ldap_module modules/mod_authnz_ldap.so
LoadModule authz_core_module modules/mod_authz_core.so
#LoadModule authz_dbd_module modules/mod_authz_dbd.so
#LoadModule authz_dbm_module modules/mod_authz_dbm.so
LoadModule authz_groupfile_module modules/mod_authz_groupfile.so
LoadModule authz_host_module modules/mod_authz_host.so
#LoadModule authz_owner_module modules/mod_authz_owner.so
LoadModule authz_user_module modules/mod_authz_user.so
LoadModule autoindex_module modules/mod_autoindex.so
LoadModule buffer_module modules/mod_buffer.so
LoadModule cache_module modules/mod_cache.so
LoadModule cache_disk_module modules/mod_cache_disk.so
#LoadModule cache_socache_module modules/mod_cache_socache.so
#LoadModule cern_meta_module modules/mod_cern_meta.so
LoadModule cgi_module modules/mod_cgi.so
#LoadModule charset_lite_module modules/mod_charset_lite.so
#LoadModule data_module modules/mod_data.so
#LoadModule dav_module modules/mod_dav.so
#LoadModule dav_fs_module modules/mod_dav_fs.so
#LoadModule dav_lock_module modules/mod_dav_lock.so
#LoadModule dbd_module modules/mod_dbd.so
LoadModule deflate_module modules/mod_deflate.so
LoadModule dir_module modules/mod_dir.so
LoadModule dumpio_module modules/mod_dumpio.so
LoadModule env_module modules/mod_env.so
LoadModule expires_module modules/mod_expires.so
#LoadModule ext_filter_module modules/mod_ext_filter.so
#LoadModule file_cache_module modules/mod_file_cache.so
#LoadModule filter_module modules/mod_filter.so
LoadModule headers_module modules/mod_headers.so
#LoadModule heartbeat_module modules/mod_heartbeat.so
#LoadModule heartmonitor_module modules/mod_heartmonitor.so
#LoadModule http2_module modules/mod_http2.so
#LoadModule ident_module modules/mod_ident.so
#LoadModule imagemap_module modules/mod_imagemap.so
LoadModule include_module modules/mod_include.so
LoadModule info_module modules/mod_info.so
LoadModule isapi_module modules/mod_isapi.so
#LoadModule lbmethod_bybusyness_module modules/mod_lbmethod_bybusyness.so
#LoadModule lbmethod_byrequests_module modules/mod_lbmethod_byrequests.so
#LoadModule lbmethod_bytraffic_module modules/mod_lbmethod_bytraffic.so
#LoadModule lbmethod_heartbeat_module modules/mod_lbmethod_heartbeat.so
#LoadModule ldap_module modules/mod_ldap.so
#LoadModule logio_module modules/mod_logio.so
LoadModule log_config_module modules/mod_log_config.so
#LoadModule log_debug_module modules/mod_log_debug.so
#LoadModule log_rotate_module modules/mod_log_rotate.so
#LoadModule log_forensic_module modules/mod_log_forensic.so
#LoadModule lua_module modules/mod_lua.so
#LoadModule macro_module modules/mod_macro.so
#LoadModule md_module modules/mod_md.so
LoadModule mime_module modules/mod_mime.so
LoadModule mime_magic_module modules/mod_mime_magic.so
LoadModule negotiation_module modules/mod_negotiation.so
LoadModule proxy_module modules/mod_proxy.so
#LoadModule proxy_ajp_module modules/mod_proxy_ajp.so
#LoadModule proxy_balancer_module modules/mod_proxy_balancer.so
#LoadModule proxy_connect_module modules/mod_proxy_connect.so
#LoadModule proxy_express_module modules/mod_proxy_express.so
#LoadModule proxy_fcgi_module modules/mod_proxy_fcgi.so
#LoadModule proxy_ftp_module modules/mod_proxy_ftp.so
#LoadModule proxy_html_module modules/mod_proxy_html.so
LoadModule proxy_http_module modules/mod_proxy_http.so
#LoadModule proxy_http2_module modules/mod_proxy_http2.so
LoadModule proxy_scgi_module modules/mod_proxy_scgi.so
#LoadModule proxy_uwsgi_module modules/mod_proxy_uwsgi.so
#LoadModule proxy_wstunnel_module modules/mod_proxy_wstunnel.so
#LoadModule ratelimit_module modules/mod_ratelimit.so
#LoadModule reflector_module modules/mod_reflector.so
#LoadModule remoteip_module modules/mod_remoteip.so
#LoadModule request_module modules/mod_request.so
#LoadModule reqtimeout_module modules/mod_reqtimeout.so
LoadModule rewrite_module modules/mod_rewrite.so
#LoadModule sed_module modules/mod_sed.so
#LoadModule session_module modules/mod_session.so
#LoadModule session_cookie_module modules/mod_session_cookie.so
#LoadModule session_crypto_module modules/mod_session_crypto.so
#LoadModule session_dbd_module modules/mod_session_dbd.so
LoadModule setenvif_module modules/mod_setenvif.so
#LoadModule slotmem_plain_module modules/mod_slotmem_plain.so
#LoadModule slotmem_shm_module modules/mod_slotmem_shm.so
#LoadModule socache_dbm_module modules/mod_socache_dbm.so
#LoadModule socache_memcache_module modules/mod_socache_memcache.so
LoadModule socache_shmcb_module modules/mod_socache_shmcb.so
#LoadModule speling_module modules/mod_speling.so
LoadModule ssl_module modules/mod_ssl.so
LoadModule status_module modules/mod_status.so
#LoadModule substitute_module modules/mod_substitute.so
#LoadModule unique_id_module modules/mod_unique_id.so
#LoadModule userdir_module modules/mod_userdir.so
#LoadModule usertrack_module modules/mod_usertrack.so
#LoadModule version_module modules/mod_version.so
#LoadModule vhost_alias_module modules/mod_vhost_alias.so
#LoadModule watchdog_module modules/mod_watchdog.so
#LoadModule xml2enc_module modules/mod_xml2enc.so

<IfModule unixd_module>
#
# If you wish httpd to run as a different user or group, you must run
# httpd as root initially and it will switch.
#
# User/Group: The name (or #number) of the user/group to run httpd as.
# It is usually good practice to create a dedicated user and group for
# running httpd, as with most system services.
#
User daemon
Group daemon

</IfModule>

# 'Main' server configuration
#
# The directives in this section set up the values used by the 'main'
# server, which responds to any requests that aren't handled by a
# <VirtualHost> definition. These values also provide defaults for
# any <VirtualHost> containers you may define later in the file.
#
# All of these directives may appear inside <VirtualHost> containers,
# in which case these default settings will be overridden for the
# virtual host being defined.
#

#
# ServerAdmin: Your address, where problems with the server should be
# e-mailed. This address appears on some server-generated pages, such
# as error documents. e.g. admin@your-domain.com
#
ServerAdmin admin@your-domain.com

#
# ServerName gives the name and port that the server uses to identify itself.
# This can often be determined automatically, but we recommend you specify
# it explicitly to prevent problems during startup.
#
# If your host doesn't have a registered DNS name, enter its IP address here.
#
ServerName localhost

#
# Deny access to the entirety of your server's filesystem. You must
# explicitly permit access to web content directories in other
# <Directory> blocks below.
#
<Directory />
AllowOverride none
Require all denied
</Directory>

#
# Note that from this point forward you must specifically allow
# particular features to be enabled - so if something's not working as
# you might expect, make sure that you have specifically enabled it
# below.
#

#
# DocumentRoot: The directory out of which you will serve your
# documents. By default, all requests are taken from this directory, but
# symbolic links and aliases may be used to point to other locations.
#
DocumentRoot "C:/Program Files (x86)/Spiceworks/pkg/gems/spiceworks_public-7.5.00107"
<Directory "C:/Program Files (x86)/Spiceworks/pkg/gems/spiceworks_public-7.5.00107">
#
# Possible values for the Options directive are "None", "All",
# or any combination of:
# Indexes Includes FollowSymLinks SymLinksifOwnerMatch ExecCGI MultiViews
#
# Note that "MultiViews" must be named *explicitly* --- "Options All"
# doesn't give it to you.
#
# The Options directive is both complicated and important. Please see
# http://httpd.apache.org/docs/2.4/mod/core.html#options
# for more information.
#
Options FollowSymLinks ExecCGI

#
# AllowOverride controls what directives may be placed in .htaccess files.
# It can be "All", "None", or any combination of the keywords:
# Options FileInfo AuthConfig Limit
#
AllowOverride None

#
# Controls who can get stuff from this server.
#
Require all granted

RewriteEngine On

<IfModule expires_module>
# find assets with cache-buster (e.g. "filename?123456")
# label with location ".asset" and pass through (PT) block above to blow out the client-side expires time
RewriteCond %{REQUEST_FILENAME} -f
RewriteCond %{REQUEST_URI} \.(ico|gif|jpe?g|png|html|css|js)$ [NC]
RewriteCond %{QUERY_STRING} ^[0-9]+$
RewriteRule . .asset%{REQUEST_URI}?asset [QSA,NS,PT]
</IfModule>

# proxy to community server to pull in community content
RewriteRule ^content_points/cdn/(.*) https://static.spiceworks.com/$1 [QSA,NS,L,P]
RewriteRule ^content_points/pass/(.*) https://community.spiceworks.com/$1?app_render=true&product_version=7.5.00107 [QSA,NS,L,P]
RewriteRule ^content_points/([^/]+) https://community.spiceworks.com/app/deliveries/$1?product_version=7.5.00107 [QSA,NS,L,P]

# tray opens up to /splash or /first_splash
# this is just a static file
RewriteRule ^(first_splash|splash)$ splash.html [NS,L]

# redirect non files to rails
# RewriteRule ^([^.]+)$ $1.html [QSA]
RewriteCond %{REQUEST_FILENAME} !-f

<IfModule proxy_scgi_module>
RewriteRule .? .scgi%{REQUEST_URI} [E=X_HTTP_AUTHORIZATION:%{HTTP:Authorization},QSA,NS,L]
</IfModule>

<IfModule headers_module>
Header set X-UA-Compatible "IE=Edge,chrome=1"
</IfModule>
</Directory>

#
# DirectoryIndex: sets the file that Apache will serve if a directory
# is requested.
#
<IfModule dir_module>
DirectoryIndex index.html
</IfModule>

#
# The following lines prevent .htaccess and .htpasswd files from being
# viewed by Web clients.
#
<Files ".ht*">
Require all denied
</Files>

#
# ErrorLog: The location of the error log file.
# If you do not specify an ErrorLog directive within a <VirtualHost>
# container, error messages relating to that virtual host will be
# logged here. If you *do* define an error logfile for a <VirtualHost>
# container, that host's errors will be logged there and not here.
#
ErrorLog "log/error.log"

#
# LogLevel: Control the number of messages logged to the error_log.
# Possible values include: debug, info, notice, warn, error, crit,
# alert, emerg.
#
LogLevel warn

<IfModule log_config_module>
#
# The following directives define some format nicknames for use with
# a CustomLog directive (see below).
#
LogFormat "%h %l %u %t \"%r\" %>s %b \"%{Referer}i\" \"%{User-Agent}i\"" combined
LogFormat "%h %l %u %t \"%r\" %>s %b" common

#
# The location and format of the access logfile (Common Logfile Format).
# If you do not define any access logfiles within a <VirtualHost>
# container, they will be logged here. Contrariwise, if you *do*
# define per-<VirtualHost> access logfiles, transactions will be
# logged therein and *not* in this file.
#
#CustomLog "logs/access.log" common

#
# If you prefer a logfile with access, agent, and referer information
# (Combined Logfile Format) you can use the following directive.
#
CustomLog "logs/access.log" combined
</IfModule>

<IfModule alias_module>
#
# Redirect: Allows you to tell clients about documents that used to
# exist in your server's namespace, but do not anymore. The client
# will make a new request for the document at its new location.
# Example:
# Redirect permanent /foo http://www.example.com/bar

#
# Alias: Maps web paths into filesystem paths and is used to
# access content that does not live under the DocumentRoot.
# Example:
# Alias /webpath /full/filesystem/path
#
# If you include a trailing / on /webpath then the server will
# require it to be present in the URL. You will also likely
# need to provide a <Directory> section to allow access to
# the filesystem path.
Alias /.asset "C:/Program Files (x86)/Spiceworks/pkg/gems/spiceworks_public-7.5.00107"

#
# ScriptAlias: This controls which directories contain server scripts.
# ScriptAliases are essentially the same as Aliases, except that
# documents in the target directory are treated as applications and
# run by the server when requested rather than as documents sent to the
# client. The same rules about trailing "/" apply to ScriptAlias
# directives as to Alias.
#
ScriptAlias /cgi-bin/ "${SRVROOT}/cgi-bin/"

</IfModule>

<IfModule cgid_module>
#
# ScriptSock: On threaded servers, designate the path to the UNIX
# socket used to communicate with the CGI daemon of mod_cgid.
#
#Scriptsock logs/cgisock
</IfModule>

#
# "${SRVROOT}/cgi-bin" should be changed to whatever your ScriptAliased
# CGI directory exists, if you have that configured.
#
<Directory "${SRVROOT}/cgi-bin">
AllowOverride None
Options None
Require all granted
</Directory>

# If not specified or undetermined by mime_module
#ForceType text/plain

<IfModule mime_module>
#
# TypesConfig points to the file containing the list of mappings from
# filename extension to MIME-type.
#
TypesConfig conf/mime.types

#
# AddType allows you to add to or override the MIME configuration
# file specified in TypesConfig for specific file types.
#
#AddType application/x-gzip .tgz
#
# AddEncoding allows you to have certain browsers uncompress
# information on the fly. Note: Not all browsers support this.
#
#AddEncoding x-compress .Z
#AddEncoding x-gzip .gz .tgz
#
# If the AddEncoding directives above are commented-out, then you
# probably should define those extensions to indicate media types:
#
AddType application/x-compress .Z
AddType application/x-gzip .gz .tgz

#
# AddHandler allows you to map certain file extensions to "handlers":
# actions unrelated to filetype. These can be either built into the server
# or added with the Action directive (see below)
#
# To use CGI scripts outside of ScriptAliased directories:
# (You will also need to add "ExecCGI" to the "Options" directive.)
#
#AddHandler cgi-script .cgi .pl

# For type maps (negotiated resources):
AddHandler type-map var

#
# Filters allow you to process content before it is sent to the client.
#
# To parse .shtml files for server-side includes (SSI):
# (You will also need to add "Includes" to the "Options" directive.)
#
AddType text/html .shtml
AddOutputFilter INCLUDES .shtml
AddType text/css .css
AddType text/javascript .js
</IfModule>

#
# The mod_mime_magic module allows the server to use various hints from the
# contents of the file itself to determine its type. The MIMEMagicFile
# directive tells the module where the hint definitions are located.
#
#MIMEMagicFile conf/magic

#
# Customizable error responses come in three flavors:
# 1) plain text 2) local redirects 3) external redirects
#
# error documents:
ErrorDocument 404 /404.html
ErrorDocument 500 /500.html
ErrorDocument 503 /503.html
ErrorDocument 502 /500.html
ErrorDocument 504 /503.html
ProxyErrorOverride Off

#
# MaxRanges: Maximum number of Ranges in a request before
# returning the entire resource, or one of the special
# values 'default', 'none' or 'unlimited'.
# Default setting is to accept 200 Ranges.
#MaxRanges unlimited

#
# EnableMMAP and EnableSendfile: On systems that support it,
# memory-mapping or the sendfile syscall may be used to deliver
# files. This usually improves server performance, but must
# be turned off when serving from networked-mounted
# filesystems or if support for these functions is otherwise
# broken on your system.
# Defaults: EnableMMAP On, EnableSendfile Off
#
EnableMMAP off
EnableSendfile off

AcceptFilter http none
AcceptFilter https none

# Supplemental configuration
#
# The configuration files in the conf/extra/ directory can be
# included to add extra features or to modify the default configuration of
# the server, or you may simply copy their contents here and change as
# necessary.

# Server-pool management (MPM specific)
#Include conf/extra/httpd-mpm.conf

# Multi-language error messages
#Include conf/extra/httpd-multilang-errordoc.conf

# Fancy directory listings
#Include conf/extra/httpd-autoindex.conf

# Language settings
#Include conf/extra/httpd-languages.conf

# User home directories
#Include conf/extra/httpd-userdir.conf

# Real-time info on requests and configuration
#Include conf/extra/httpd-info.conf

# Virtual hosts
#Include conf/extra/httpd-vhosts.conf

# Local access to the Apache HTTP Server Manual
#Include conf/extra/httpd-manual.conf

# Distributed authoring and versioning (WebDAV)
#Include conf/extra/httpd-dav.conf

# Various default settings
#Include conf/extra/httpd-default.conf

# Configure mod_proxy_html to understand HTML4/XHTML1
<IfModule proxy_html_module>
Include conf/extra/httpd-proxy-html.conf
</IfModule>

# this section is included only when you run httpdconf with the files
# ssl-cert.pem and ssl-private-key.pem in the ssl subdirectory
# Secure (SSL/TLS) connections
# Note: The following must must be present to support
# starting without SSL on platforms with no /dev/random equivalent
# but a statically compiled-in mod_ssl.
#
<IfModule ssl_module>
#Include conf/extra/httpd-ssl.conf
#Include conf/extra/httpd-ahssl.conf
SSLRandomSeed startup builtin
SSLRandomSeed connect builtin
SSLCompression off
SSLPassPhraseDialog builtin
SSLSessionCache "shmcb:${SRVROOT}/logs/ssl_scache(512000)"
SSLSessionCacheTimeout 300
<VirtualHost *:443 >
SSLEngine on
SSLOptions +StrictRequire
SSLProtocol -All +TLSv1 +TLSv1.1 +TLSv1.2
SSLCipherSuite ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-AES256-GCM-SHA384:DHE-RSA-AES128-GCM-SHA256:DHE-DSS-AES128-GCM-SHA256:kEDH+AESGCM:ECDHE-RSA-AES128-SHA256:ECDHE-ECDSA-AES128-SHA256:ECDHE-RSA-AES128-SHA:ECDHE-ECDSA-AES128-SHA:ECDHE-RSA-AES256-SHA384:ECDHE-ECDSA-AES256-SHA384:ECDHE-RSA-AES256-SHA:ECDHE-ECDSA-AES256-SHA:DHE-RSA-AES128-SHA256:DHE-RSA-AES128-SHA:DHE-DSS-AES128-SHA256:DHE-RSA-AES256-SHA256:DHE-DSS-AES256-SHA:DHE-RSA-AES256-SHA:AES128-GCM-SHA256:AES256-GCM-SHA384:AES128-SHA256:AES256-SHA256:AES128-SHA:AES256-SHA:AES:CAMELLIA:DES-CBC3-SHA:!aNULL:!eNULL:!EXPORT:!DES:!RC4:!MD5:!PSK:!aECDH:!EDH-DSS-DES-CBC3-SHA:!EDH-RSA-DES-CBC3-SHA:!KRB5-DES-CBC3-SHA
SSLHonorCipherOrder on
SSLCertificateFile "ssl/ssl-cert.pem"
SSLCertificateKeyFile "ssl/ssl-private-key.pem"
</VirtualHost>

AddType application/x-x509-ca-cert .crt
AddType application/x-pkcs7-crl .crl
SSLProxyEngine on
</IfModule>

<IfModule http2_module>
ProtocolsHonorOrder On
Protocols h2 h2c http/1.1
</IfModule>

# BEGIN Custom SpiceWorks Directives:
TraceEnable off
UseCanonicalPhysicalPort On
AllowEncodedSlashes On
ServerSignature Off
ServerTokens Prod
ThreadsPerChild 150
LimitRequestLine 8190

PidFile "log/httpd.pid"

<IfModule proxy_scgi_module>
Include conf/scgi_proxy.conf
</IfModule>

<Proxy https://static.spiceworks.com >
ProxySet retry=0 max=4 smax=1 ttl=15 connectiontimeout=10 acquire=30000 timeout=30
</Proxy>
<Proxy https://community.spiceworks.com >
ProxySet retry=0 max=4 smax=1 ttl=15 connectiontimeout=10 acquire=30000 timeout=30
</Proxy>

<IfModule mod_filter>
AddOutputFilterByType DEFLATE text/html text/plain text/xml application/xml application/xhtml+xml text/javascript application/x-javascript text/css
</IfModule>

<IfModule log_rotate_module>
RotateLogs On
RotateLogsLocalTime On
RotateInterval 86400
</IfModule>

# for debugging rewrites
#RewriteLog "log/rewrite.log"
#RewriteLogLevel 5

# client-side caching for assets
<IfModule expires_module>
ExpiresActive On
# 10 minutes by default
<FilesMatch "(i?)\.(ico|gif|jpe?g|png|html|css(\.gz)?|js(\.gz)?)$">
ExpiresDefault "access plus 10 minutes"
</FilesMatch>
# 1 year for assets with cache-buster ("labeled" using location prefix in rewrite rules below)
<Location "/.asset/">
ExpiresDefault "access plus 1 year"
</Location>
</IfModule>

<IfModule dumpio_module>
# Full request logging
# Also change LogLevel above
DumpIOInput On
#LogLevel dumpio:trace7
</IfModule>

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

463

464

465

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483

484

485

486

487

488

489

490

491

492

493

494

495

496

497

498

499

500

501

502

503

504

505

506

507

508

509

510

511

512

513

514

515

516

517

518

519

520

521

522

523

524

525

526

527

528

529

530

531

532

533

534

535

536

537

538

539

540

541

542

543

544

545

546

547

548

549

550

551

552

553

554

555

556

557

558

559

560

561

562

563

564

565

566

567

568

569

570

571

572

573

574

575

576

577

578

579

580

581

582

583

584

585

586

587

588

589

590

591

592

593

594

595

596

597

598

599

600

601

602

603

604

605

606

607

608

609

610

611

612

613

614

615

616

617

618

619

620

621

622

623

624

625

626

627

628

629

630

631

632

633

634

635

636

637

638

639

640

641

642

# This is the main Apache HTTP server configuration file. It contains the

# configuration directives that give the server its instructions.

# See <URL:http://httpd.apache.org/docs/2.4/> for detailed information.

# In particular, see

# <URL:http://httpd.apache.org/docs/2.4/mod/directives.html>

# for a discussion of each configuration directive.

# Do NOT simply read the instructions in here without understanding

# what they do. They're here only as hints or reminders. If you are unsure

# consult the online docs. You have been warned.

# Configuration and logfile names: If the filenames you specify for many

# of the server's control files begin with "/" (or "drive:/" for Win32), the

# server will use that explicit path. If the filenames do *not* begin

# with "/", the value of ServerRoot is prepended -- so "logs/access_log"

# with ServerRoot set to "/usr/local/apache2" will be interpreted by the

# server as "/usr/local/apache2/logs/access_log", whereas "/logs/access_log"

# will be interpreted as '/logs/access_log'.

# NOTE: Where filenames are specified, you must use forward slashes

# instead of backslashes (e.g., "c:/apache" instead of "c:\apache").

# If a drive letter is omitted, the drive on which httpd.exe is located

# will be used by default. It is recommended that you always supply

# an explicit drive letter in absolute paths to avoid confusion.

# ServerRoot: The top of the directory tree under which the server's

# configuration, error, and log files are kept.

# Do not add a slash at the end of the directory path. If you point

# ServerRoot at a non-local disk, be sure to specify a local disk on the

# Mutex directive, if file-based mutexes are used. If you wish to share the

# same ServerRoot for multiple httpd daemons, you will need to change at

# least PidFile.

Define SRVROOT "C:/Program Files (x86)/Spiceworks/httpd"

ServerRoot "${SRVROOT}"

# Mutex: Allows you to set the mutex mechanism and mutex file directory

# for individual mutexes, or change the global defaults

# Uncomment and change the directory if mutexes are file-based and the default

# mutex file directory is not on a local disk or is not appropriate for some

# other reason.

# Mutex default:logs

# Listen: Allows you to bind Apache to specific IP addresses and/or

# ports, instead of the default. See also the <VirtualHost>

# directive.

# Change this to Listen on specific IP addresses as shown below to

# prevent Apache from glomming onto all bound IP addresses.

#Listen 12.34.56.78:80

Listen 127.0.0.1:80

Listen 443 https

# Dynamic Shared Object (DSO) Support

# To be able to use the functionality of a module which was built as a DSO you

# have to place corresponding `LoadModule' lines at this location so the

# directives contained in it are actually available _before_ they are used.

# Statically compiled modules (those listed by `httpd -l') do not need

# to be loaded here.

# Example:

# LoadModule foo_module modules/mod_foo.so

#LoadModule access_compat_module modules/mod_access_compat.so

LoadModule actions_module modules/mod_actions.so

LoadModule alias_module modules/mod_alias.so

LoadModule allowmethods_module modules/mod_allowmethods.so

LoadModule asis_module modules/mod_asis.so

LoadModule auth_basic_module modules/mod_auth_basic.so

#LoadModule auth_digest_module modules/mod_auth_digest.so

#LoadModule auth_form_module modules/mod_auth_form.so

#LoadModule authn_anon_module modules/mod_authn_anon.so

LoadModule authn_core_module modules/mod_authn_core.so

#LoadModule authn_dbd_module modules/mod_authn_dbd.so

#LoadModule authn_dbm_module modules/mod_authn_dbm.so

LoadModule authn_file_module modules/mod_authn_file.so

#LoadModule authn_socache_module modules/mod_authn_socache.so

#LoadModule authnz_fcgi_module modules/mod_authnz_fcgi.so

#LoadModule authnz_ldap_module modules/mod_authnz_ldap.so

LoadModule authz_core_module modules/mod_authz_core.so

#LoadModule authz_dbd_module modules/mod_authz_dbd.so

#LoadModule authz_dbm_module modules/mod_authz_dbm.so

LoadModule authz_groupfile_module modules/mod_authz_groupfile.so

LoadModule authz_host_module modules/mod_authz_host.so

#LoadModule authz_owner_module modules/mod_authz_owner.so

LoadModule authz_user_module modules/mod_authz_user.so

LoadModule autoindex_module modules/mod_autoindex.so

LoadModule buffer_module modules/mod_buffer.so

LoadModule cache_module modules/mod_cache.so

LoadModule cache_disk_module modules/mod_cache_disk.so

#LoadModule cache_socache_module modules/mod_cache_socache.so

#LoadModule cern_meta_module modules/mod_cern_meta.so

LoadModule cgi_module modules/mod_cgi.so

#LoadModule charset_lite_module modules/mod_charset_lite.so

#LoadModule data_module modules/mod_data.so

#LoadModule dav_module modules/mod_dav.so

#LoadModule dav_fs_module modules/mod_dav_fs.so

#LoadModule dav_lock_module modules/mod_dav_lock.so

#LoadModule dbd_module modules/mod_dbd.so

LoadModule deflate_module modules/mod_deflate.so

LoadModule dir_module modules/mod_dir.so

LoadModule dumpio_module modules/mod_dumpio.so

LoadModule env_module modules/mod_env.so

LoadModule expires_module modules/mod_expires.so

#LoadModule ext_filter_module modules/mod_ext_filter.so

#LoadModule file_cache_module modules/mod_file_cache.so

#LoadModule filter_module modules/mod_filter.so

LoadModule headers_module modules/mod_headers.so

#LoadModule heartbeat_module modules/mod_heartbeat.so

#LoadModule heartmonitor_module modules/mod_heartmonitor.so

#LoadModule http2_module modules/mod_http2.so

#LoadModule ident_module modules/mod_ident.so

#LoadModule imagemap_module modules/mod_imagemap.so

LoadModule include_module modules/mod_include.so

LoadModule info_module modules/mod_info.so

LoadModule isapi_module modules/mod_isapi.so

#LoadModule lbmethod_bybusyness_module modules/mod_lbmethod_bybusyness.so

#LoadModule lbmethod_byrequests_module modules/mod_lbmethod_byrequests.so

#LoadModule lbmethod_bytraffic_module modules/mod_lbmethod_bytraffic.so

#LoadModule lbmethod_heartbeat_module modules/mod_lbmethod_heartbeat.so

#LoadModule ldap_module modules/mod_ldap.so

#LoadModule logio_module modules/mod_logio.so

LoadModule log_config_module modules/mod_log_config.so

#LoadModule log_debug_module modules/mod_log_debug.so

#LoadModule log_rotate_module modules/mod_log_rotate.so

#LoadModule log_forensic_module modules/mod_log_forensic.so

#LoadModule lua_module modules/mod_lua.so

#LoadModule macro_module modules/mod_macro.so

#LoadModule md_module modules/mod_md.so

LoadModule mime_module modules/mod_mime.so

LoadModule mime_magic_module modules/mod_mime_magic.so

LoadModule negotiation_module modules/mod_negotiation.so

LoadModule proxy_module modules/mod_proxy.so

#LoadModule proxy_ajp_module modules/mod_proxy_ajp.so

#LoadModule proxy_balancer_module modules/mod_proxy_balancer.so

#LoadModule proxy_connect_module modules/mod_proxy_connect.so

#LoadModule proxy_express_module modules/mod_proxy_express.so

#LoadModule proxy_fcgi_module modules/mod_proxy_fcgi.so

#LoadModule proxy_ftp_module modules/mod_proxy_ftp.so

#LoadModule proxy_html_module modules/mod_proxy_html.so

LoadModule proxy_http_module modules/mod_proxy_http.so

#LoadModule proxy_http2_module modules/mod_proxy_http2.so

LoadModule proxy_scgi_module modules/mod_proxy_scgi.so

#LoadModule proxy_uwsgi_module modules/mod_proxy_uwsgi.so

#LoadModule proxy_wstunnel_module modules/mod_proxy_wstunnel.so

#LoadModule ratelimit_module modules/mod_ratelimit.so

#LoadModule reflector_module modules/mod_reflector.so

#LoadModule remoteip_module modules/mod_remoteip.so

#LoadModule request_module modules/mod_request.so

#LoadModule reqtimeout_module modules/mod_reqtimeout.so

LoadModule rewrite_module modules/mod_rewrite.so

#LoadModule sed_module modules/mod_sed.so

#LoadModule session_module modules/mod_session.so

#LoadModule session_cookie_module modules/mod_session_cookie.so

#LoadModule session_crypto_module modules/mod_session_crypto.so

#LoadModule session_dbd_module modules/mod_session_dbd.so

LoadModule setenvif_module modules/mod_setenvif.so

#LoadModule slotmem_plain_module modules/mod_slotmem_plain.so

#LoadModule slotmem_shm_module modules/mod_slotmem_shm.so

#LoadModule socache_dbm_module modules/mod_socache_dbm.so

#LoadModule socache_memcache_module modules/mod_socache_memcache.so

LoadModule socache_shmcb_module modules/mod_socache_shmcb.so

#LoadModule speling_module modules/mod_speling.so

LoadModule ssl_module modules/mod_ssl.so

LoadModule status_module modules/mod_status.so

#LoadModule substitute_module modules/mod_substitute.so

#LoadModule unique_id_module modules/mod_unique_id.so

#LoadModule userdir_module modules/mod_userdir.so

#LoadModule usertrack_module modules/mod_usertrack.so

#LoadModule version_module modules/mod_version.so

#LoadModule vhost_alias_module modules/mod_vhost_alias.so

#LoadModule watchdog_module modules/mod_watchdog.so

#LoadModule xml2enc_module modules/mod_xml2enc.so

# If you wish httpd to run as a different user or group, you must run

# httpd as root initially and it will switch.

# User/Group: The name (or #number) of the user/group to run httpd as.

# It is usually good practice to create a dedicated user and group for

# running httpd, as with most system services.

User daemon

Group daemon

</IfModule>

# 'Main' server configuration

# The directives in this section set up the values used by the 'main'

# server, which responds to any requests that aren't handled by a

# <VirtualHost> definition. These values also provide defaults for

# any <VirtualHost> containers you may define later in the file.

# All of these directives may appear inside <VirtualHost> containers,

# in which case these default settings will be overridden for the

# virtual host being defined.

# ServerAdmin: Your address, where problems with the server should be

# e-mailed. This address appears on some server-generated pages, such

# as error documents. e.g. [email protected]

ServerAdmin admin@your-domain.com

# ServerName gives the name and port that the server uses to identify itself.

# This can often be determined automatically, but we recommend you specify

# it explicitly to prevent problems during startup.

# If your host doesn't have a registered DNS name, enter its IP address here.

ServerName localhost

# Deny access to the entirety of your server's filesystem. You must

# explicitly permit access to web content directories in other

# <Directory> blocks below.

AllowOverride none

Require all denied

</Directory>

# Note that from this point forward you must specifically allow

# particular features to be enabled - so if something's not working as

# you might expect, make sure that you have specifically enabled it

# below.

# DocumentRoot: The directory out of which you will serve your

# documents. By default, all requests are taken from this directory, but

# symbolic links and aliases may be used to point to other locations.

DocumentRoot "C:/Program Files (x86)/Spiceworks/pkg/gems/spiceworks_public-7.5.00107"

# Possible values for the Options directive are "None", "All",

# or any combination of:

# Indexes Includes FollowSymLinks SymLinksifOwnerMatch ExecCGI MultiViews

# Note that "MultiViews" must be named *explicitly* --- "Options All"

# doesn't give it to you.

# The Options directive is both complicated and important. Please see

# http://httpd.apache.org/docs/2.4/mod/core.html#options

# for more information.

Options FollowSymLinks ExecCGI

# AllowOverride controls what directives may be placed in .htaccess files.

# It can be "All", "None", or any combination of the keywords:

# Options FileInfo AuthConfig Limit

AllowOverride None

# Controls who can get stuff from this server.

Require all granted

RewriteEngine On

# find assets with cache-buster (e.g. "filename?123456")

# label with location ".asset" and pass through (PT) block above to blow out the client-side expires time

RewriteCond %{REQUEST_FILENAME} -f

RewriteCond %{REQUEST_URI} \.(ico|gif|jpe?g|png|html|css|js)$ [NC]

RewriteCond %{QUERY_STRING} ^[0-9]+$

RewriteRule . .asset%{REQUEST_URI}?asset [QSA,NS,PT]

</IfModule>

# proxy to community server to pull in community content

RewriteRule ^content_points/cdn/(.*) https://static.spiceworks.com/$1 [QSA,NS,L,P]

RewriteRule ^content_points/pass/(.*) https://community.spiceworks.com/$1?app_render=true&product_version=7.5.00107 [QSA,NS,L,P]

RewriteRule ^content_points/([^/]+) https://community.spiceworks.com/app/deliveries/$1?product_version=7.5.00107 [QSA,NS,L,P]

# tray opens up to /splash or /first_splash

# this is just a static file

RewriteRule ^(first_splash|splash)$ splash.html [NS,L]

# redirect non files to rails

# RewriteRule ^([^.]+)$ $1.html [QSA]

RewriteCond %{REQUEST_FILENAME} !-f

RewriteRule .? .scgi%{REQUEST_URI} [E=X_HTTP_AUTHORIZATION:%{HTTP:Authorization},QSA,NS,L]

</IfModule>

Header set X-UA-Compatible "IE=Edge,chrome=1"

</IfModule>

</Directory>

# DirectoryIndex: sets the file that Apache will serve if a directory

# is requested.

DirectoryIndex index.html

</IfModule>

# The following lines prevent .htaccess and .htpasswd files from being

# viewed by Web clients.

Require all denied

</Files>

# ErrorLog: The location of the error log file.

# If you do not specify an ErrorLog directive within a <VirtualHost>

# container, error messages relating to that virtual host will be

# logged here. If you *do* define an error logfile for a <VirtualHost>

# container, that host's errors will be logged there and not here.

ErrorLog "log/error.log"

# LogLevel: Control the number of messages logged to the error_log.

# Possible values include: debug, info, notice, warn, error, crit,

# alert, emerg.

LogLevel warn

# The following directives define some format nicknames for use with

# a CustomLog directive (see below).

LogFormat "%h %l %u %t \"%r\" %>s %b \"%{Referer}i\" \"%{User-Agent}i\"" combined

LogFormat "%h %l %u %t \"%r\" %>s %b" common

# The location and format of the access logfile (Common Logfile Format).

# If you do not define any access logfiles within a <VirtualHost>

# container, they will be logged here. Contrariwise, if you *do*

# define per-<VirtualHost> access logfiles, transactions will be

# logged therein and *not* in this file.

#CustomLog "logs/access.log" common

# If you prefer a logfile with access, agent, and referer information

# (Combined Logfile Format) you can use the following directive.

CustomLog "logs/access.log" combined

</IfModule>

# Redirect: Allows you to tell clients about documents that used to

# exist in your server's namespace, but do not anymore. The client

# will make a new request for the document at its new location.

# Example:

# Redirect permanent /foo http://www.example.com/bar

# Alias: Maps web paths into filesystem paths and is used to

# access content that does not live under the DocumentRoot.

# Example:

# Alias /webpath /full/filesystem/path

# If you include a trailing / on /webpath then the server will

# require it to be present in the URL. You will also likely

# need to provide a <Directory> section to allow access to

# the filesystem path.

Alias /.asset "C:/Program Files (x86)/Spiceworks/pkg/gems/spiceworks_public-7.5.00107"

# ScriptAlias: This controls which directories contain server scripts.

# ScriptAliases are essentially the same as Aliases, except that

# documents in the target directory are treated as applications and

# run by the server when requested rather than as documents sent to the

# client. The same rules about trailing "/" apply to ScriptAlias

# directives as to Alias.

ScriptAlias /cgi-bin/ "${SRVROOT}/cgi-bin/"

</IfModule>

# ScriptSock: On threaded servers, designate the path to the UNIX

# socket used to communicate with the CGI daemon of mod_cgid.

#Scriptsock logs/cgisock

</IfModule>

# "${SRVROOT}/cgi-bin" should be changed to whatever your ScriptAliased

# CGI directory exists, if you have that configured.

AllowOverride None

Options None

Require all granted

</Directory>

# If not specified or undetermined by mime_module

#ForceType text/plain

# TypesConfig points to the file containing the list of mappings from

# filename extension to MIME-type.

TypesConfig conf/mime.types

# AddType allows you to add to or override the MIME configuration

# file specified in TypesConfig for specific file types.

#AddType application/x-gzip .tgz

# AddEncoding allows you to have certain browsers uncompress

# information on the fly. Note: Not all browsers support this.

#AddEncoding x-compress .Z

#AddEncoding x-gzip .gz .tgz

# If the AddEncoding directives above are commented-out, then you

# probably should define those extensions to indicate media types:

AddType application/x-compress .Z

AddType application/x-gzip .gz .tgz

# AddHandler allows you to map certain file extensions to "handlers":

# actions unrelated to filetype. These can be either built into the server

# or added with the Action directive (see below)

# To use CGI scripts outside of ScriptAliased directories:

# (You will also need to add "ExecCGI" to the "Options" directive.)

#AddHandler cgi-script .cgi .pl

# For type maps (negotiated resources):

AddHandler type-map var

# Filters allow you to process content before it is sent to the client.

# To parse .shtml files for server-side includes (SSI):

# (You will also need to add "Includes" to the "Options" directive.)

AddType text/html .shtml

AddOutputFilter INCLUDES .shtml

AddType text/css .css

AddType text/javascript .js

</IfModule>

# The mod_mime_magic module allows the server to use various hints from the

# contents of the file itself to determine its type. The MIMEMagicFile

# directive tells the module where the hint definitions are located.

#MIMEMagicFile conf/magic

# Customizable error responses come in three flavors:

# 1) plain text 2) local redirects 3) external redirects

# error documents:

ErrorDocument 404 /404.html

ErrorDocument 500 /500.html

ErrorDocument 503 /503.html

ErrorDocument 502 /500.html

ErrorDocument 504 /503.html

ProxyErrorOverride Off

# MaxRanges: Maximum number of Ranges in a request before

# returning the entire resource, or one of the special

# values 'default', 'none' or 'unlimited'.

# Default setting is to accept 200 Ranges.

#MaxRanges unlimited

# EnableMMAP and EnableSendfile: On systems that support it,

# memory-mapping or the sendfile syscall may be used to deliver

# files. This usually improves server performance, but must

# be turned off when serving from networked-mounted

# filesystems or if support for these functions is otherwise

# broken on your system.

# Defaults: EnableMMAP On, EnableSendfile Off

EnableMMAP off

EnableSendfile off

AcceptFilter http none

AcceptFilter https none

# Supplemental configuration

# The configuration files in the conf/extra/ directory can be

# included to add extra features or to modify the default configuration of

# the server, or you may simply copy their contents here and change as

# necessary.

# Server-pool management (MPM specific)

#Include conf/extra/httpd-mpm.conf

# Multi-language error messages

#Include conf/extra/httpd-multilang-errordoc.conf

# Fancy directory listings

#Include conf/extra/httpd-autoindex.conf

# Language settings

#Include conf/extra/httpd-languages.conf

# User home directories

#Include conf/extra/httpd-userdir.conf

# Real-time info on requests and configuration

#Include conf/extra/httpd-info.conf

# Virtual hosts

#Include conf/extra/httpd-vhosts.conf

# Local access to the Apache HTTP Server Manual

#Include conf/extra/httpd-manual.conf

# Distributed authoring and versioning (WebDAV)

#Include conf/extra/httpd-dav.conf

# Various default settings

#Include conf/extra/httpd-default.conf

# Configure mod_proxy_html to understand HTML4/XHTML1

Include conf/extra/httpd-proxy-html.conf

</IfModule>

# this section is included only when you run httpdconf with the files

# ssl-cert.pem and ssl-private-key.pem in the ssl subdirectory

# Secure (SSL/TLS) connections

# Note: The following must must be present to support

# starting without SSL on platforms with no /dev/random equivalent

# but a statically compiled-in mod_ssl.

#Include conf/extra/httpd-ssl.conf

#Include conf/extra/httpd-ahssl.conf

SSLRandomSeed startup builtin

SSLRandomSeed connect builtin

SSLCompression off

SSLPassPhraseDialog builtin

SSLSessionCache "shmcb:${SRVROOT}/logs/ssl_scache(512000)"

SSLSessionCacheTimeout 300

SSLEngine on

SSLOptions +StrictRequire

SSLProtocol -All +TLSv1 +TLSv1.1 +TLSv1.2

SSLCipherSuite ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-AES256-GCM-SHA384:DHE-RSA-AES128-GCM-SHA256:DHE-DSS-AES128-GCM-SHA256:kEDH+AESGCM:ECDHE-RSA-AES128-SHA256:ECDHE-ECDSA-AES128-SHA256:ECDHE-RSA-AES128-SHA:ECDHE-ECDSA-AES128-SHA:ECDHE-RSA-AES256-SHA384:ECDHE-ECDSA-AES256-SHA384:ECDHE-RSA-AES256-SHA:ECDHE-ECDSA-AES256-SHA:DHE-RSA-AES128-SHA256:DHE-RSA-AES128-SHA:DHE-DSS-AES128-SHA256:DHE-RSA-AES256-SHA256:DHE-DSS-AES256-SHA:DHE-RSA-AES256-SHA:AES128-GCM-SHA256:AES256-GCM-SHA384:AES128-SHA256:AES256-SHA256:AES128-SHA:AES256-SHA:AES:CAMELLIA:DES-CBC3-SHA:!aNULL:!eNULL:!EXPORT:!DES:!RC4:!MD5:!PSK:!aECDH:!EDH-DSS-DES-CBC3-SHA:!EDH-RSA-DES-CBC3-SHA:!KRB5-DES-CBC3-SHA

SSLHonorCipherOrder on

SSLCertificateFile "ssl/ssl-cert.pem"

SSLCertificateKeyFile "ssl/ssl-private-key.pem"

</VirtualHost>

AddType application/x-x509-ca-cert .crt

AddType application/x-pkcs7-crl .crl

SSLProxyEngine on

</IfModule>

ProtocolsHonorOrder On

Protocols h2 h2c http/1.1

</IfModule>

# BEGIN Custom SpiceWorks Directives:

TraceEnable off

UseCanonicalPhysicalPort On

AllowEncodedSlashes On

ServerSignature Off

ServerTokens Prod

ThreadsPerChild 150

LimitRequestLine 8190

PidFile "log/httpd.pid"

Include conf/scgi_proxy.conf

</IfModule>

ProxySet retry=0 max=4 smax=1 ttl=15 connectiontimeout=10 acquire=30000 timeout=30

</Proxy>

ProxySet retry=0 max=4 smax=1 ttl=15 connectiontimeout=10 acquire=30000 timeout=30

</Proxy>

AddOutputFilterByType DEFLATE text/html text/plain text/xml application/xml application/xhtml+xml text/javascript application/x-javascript text/css

</IfModule>

RotateLogs On

RotateLogsLocalTime On

RotateInterval 86400

</IfModule>

# for debugging rewrites

#RewriteLog "log/rewrite.log"

#RewriteLogLevel 5

# client-side caching for assets

ExpiresActive On

# 10 minutes by default

ExpiresDefault "access plus 10 minutes"

</FilesMatch>

# 1 year for assets with cache-buster ("labeled" using location prefix in rewrite rules below)

ExpiresDefault "access plus 1 year"

</Location>

</IfModule>

# Full request logging

# Also change LogLevel above

DumpIOInput On

#LogLevel dumpio:trace7

</IfModule>

Salvare il file di configurazione httpd.conf

Dallo snap-in Servizi avviare il servizio Spiceworks

Dovremmo vedere il servizio Running come mostrato nell’immagine sovrastante

ATTENZIONE

Se il servizio dovesse andare in crash in automatico provare a sostituire le seguenti righe prendendole dal file httpd.conf originale e sostituendole nel file aggiornato

<VirtualHost *:443 >
SSLEngine on
SSLOptions +StrictRequire
SSLProtocol -All +TLSv1 +TLSv1.1 +TLSv1.2
SSLCipherSuite ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-AES256-GCM-SHA384:DHE-RSA-AES128-GCM-SHA256:DHE-DSS-AES128-GCM-SHA256:kEDH+AESGCM:ECDHE-RSA-AES128-SHA256:ECDHE-ECDSA-AES128-SHA256:ECDHE-RSA-AES128-SHA:ECDHE-ECDSA-AES128-SHA:ECDHE-RSA-AES256-SHA384:ECDHE-ECDSA-AES256-SHA384:ECDHE-RSA-AES256-SHA:ECDHE-ECDSA-AES256-SHA:DHE-RSA-AES128-SHA256:DHE-RSA-AES128-SHA:DHE-DSS-AES128-SHA256:DHE-RSA-AES256-SHA256:DHE-DSS-AES256-SHA:DHE-RSA-AES256-SHA:AES128-GCM-SHA256:AES256-GCM-SHA384:AES128-SHA256:AES256-SHA256:AES128-SHA:AES256-SHA:AES:CAMELLIA:DES-CBC3-SHA:!aNULL:!eNULL:!EXPORT:!DES:!RC4:!MD5:!PSK:!aECDH:!EDH-DSS-DES-CBC3-SHA:!EDH-RSA-DES-CBC3-SHA:!KRB5-DES-CBC3-SHA
SSLHonorCipherOrder on
SSLCertificateFile "ssl/ssl-cert.pem"
SSLCertificateKeyFile "ssl/ssl-private-key.pem"
</VirtualHost>

SSLEngine on

SSLOptions +StrictRequire

SSLProtocol -All +TLSv1 +TLSv1.1 +TLSv1.2

SSLHonorCipherOrder on

SSLCertificateFile "ssl/ssl-cert.pem"

SSLCertificateKeyFile "ssl/ssl-private-key.pem"

</VirtualHost>

VERIFICHE POST MIGRAZIONE

Per verificare che l’aggiornamento sia andato a buon fine aprire una finestra di DOS e digitare il seguente comando:

"c:\Program Files (x86)\Spiceworks\httpd\bin\spiceworks-httpd.exe" -v

0	"c:\Program Files (x86)\Spiceworks\httpd\bin\spiceworks-httpd.exe" -v

Server version: Apache/2.4.51 (Win32)
Server built: Oct 8 2021 16:15:42

Se abbiamo fatto tutto correttamente dovremmo vedere la versione aggiornata di apache e quindi la 2.4.51 (Win32) come mostrato nell’immagine sovrastante

L’ultima prova che resta da fare per capire se è tutto OK è quella di eseguire spiceworks via web richiamdno il link https://NOME-DEL-SERVER/dashboard

Se viene mostrata la pagina di login vuol dire che il web server è attivo e funzionante

A questo punto non resta che loggarsi e verificare che siano presenti tutti gli oggetti pre-upfate di Apache

Se è tutto OK dovremmo vedere tutti gli oggetti presenti prima dell’aggiornamento di Apache.

Articoli Recenti

Veeam Backup

Restore di una VM da VmWare ESXi a Proxmox con Veeam Backup and Replication

Upgrade di Veeam Backup & Replication dalla versione 12.0.0.1402 alla versione 12.1.1.56

Upgrade di Veeam Backup & Replication dalla versione 11 alla versione 12

Veeam Backup & Replication: Configurazione del Repository Google Cloud Storage

Configuration Backup in Veeam: Error Could not load file or assembly Microsoft.SqlServer.BatchParser

Aggiornamento della versione Microsoft SQL Server in Veeam Backup & Replication

Monitoring

Warning LibreNMS: Aggiornamento alla versione PHP 8.3 su Ubuntu 24.04 basato su web server Nginx o web server Apache

Errore in LibreNMS: Python3 module issue found: ‘Required packages: [‘PyMySQL!=1.0.0’, ‘python-dotenv’, ‘redis>=4.0’, ‘setuptools’, ‘psutil>=5.6.0’, ‘command_runner>=1.3.0’]

Installazione e Configurazione Base di Prometheus su Ubuntu Server 22.04

Configurazione del monitoraggio di Ceph in Proxmox con LibreNMS

Installazione e configurazione di base di Observium su Debian 11

Configurazione del monitoraggio delle VM di Proxmox in LibreNMS

Friends

My English Lab English School

ChrSystem Servizi ICT

Since 01 Kreative Graphics

Database

Installazione e Configurazione base di Nextcloud Community Edition su Ubuntu Server 24.04

Aggiornamento di MongoDB dalla versione 3.6 alla versione 7.0 su UniFi Network Server

Installazione e configurazione di Puppet server, PuppetDB e PostgreSQL su containers LXC con Debian 11

Installazione e Configurazione base di MySQL Server su Microsoft Windows Server 2022

Installazione e Configurazione base di Moodle 4.0.5 su Ubuntu Server 22.04

Aggiornamento PostgreSQL dalla versione 14 alla versione 15 in OpenVAS su Kali Linux. ERROR: The default postgresql version is not the one used for gvmd compilation: (14, need 15)

Networking

Prima configurazione di Unifi Dream Machine Pro in Modalità Offline

Configurazione ATA Grandstream HT802 per il funzionamento di telefoni analogici con VoIP FTTH di TIM

Lista di tutti i comandi utili per la gestione in SSH dei devices Unifi

Configurazione della Connessione FTTH di TIM su Unifi Dream Machine Pro

Installazione e Configurazione del demone SNMP su Unifi Dream Machine Pro

Configurazione del DNS Dinamico su Unifi Dream Machine Pro

Autori

Raffaele Chiatto Amministratore

Marco Valle Autore

Angelo Lauria Autore

Edoardo Prot Autore

Davide D’Urso Autore

Raffaele Chiatto

Sono Raffaele Chiatto, un appassionato di informatica a 360 gradi. Tutto è iniziato nel 1996, quando ho scoperto il mondo dell'informatica grazie a Windows 95, e da quel momento non ho più smesso di esplorare e imparare. Ogni giorno mi dedico con curiosità e passione a scoprire le nuove frontiere di questo settore in continua evoluzione.

← Articoli precedenti Next →

Tag: apache | httpd.conf | Microsoft Visual C++ 2015 Redistributable | Mod Log Rotate | Spiceworks

Categorie: Apache | Spiceworks

Installazione e Configurazione Base di TrueNAS Scale 24.10.2

Feb 21, 2025

TrueNAS SCALE 24.10.2, noto con il nome in codice "Electric Eel", rappresenta l'ultima evoluzione nel panorama dei sistemi operativi open-source per lo storage di rete. Questa versione introduce oltre 120 correzioni di bug e miglioramenti, elevando la...

Configurazione di Memcache in Nextcloud Hub 9 (30.0.4) con APCu e Redis

Feb 19, 2025

Memcache in Nextcloud è un sistema di caching utilizzato per migliorare le prestazioni dell'applicazione, riducendo il carico sul database e accelerando il recupero dei dati frequentemente richiesti. Funziona memorizzando temporaneamente informazioni in memoria RAM,...

Come Installare e Montare in Ubuntu Server 24.04 un nuovo Drive LVM

Feb 17, 2025

LVM (Logical Volume Manager) è una tecnologia che consente di gestire i dischi rigidi e le partizioni in modo flessibile e dinamico. Su Ubuntu Server 24.04, utilizzare LVM può facilitare la gestione dello spazio su disco, permettendo di ridimensionare i volumi o...

Upgrade di Apache dalla versione 2.2 alla 2.4+ in Spiceworks

PREREQUISITI

VERIFICA DELLA VERSIONE DI APACHE INSTALLATA

DOWNLOAD DELL’ULTIMA VERSIONE DI VISUAL C++ 2015 REDISTRIBUTABLE

DOWNLOAD DELL’ULTIMA VERSIONE DI APACHE STABILE

INSTALLAZIONE DI VISUAL C++ 2015 REDISTRIBUTABLE

AGGIORNAMENTO DI APACHE

DOWNLOAD DEL PLUGIN MOD LOG ROTATE PER APACHE 2.4.X

MERGE DELLE CARTELLE HTTPD DI APACHE

CONFIGURAZIONE DEL FILE HTTPD.CONF CON APACHE 2.4

ATTENZIONE

VERIFICHE POST MIGRAZIONE

Articoli Recenti

Veeam Backup

Monitoring

Friends

Database

Networking

Autori

Raffaele Chiatto

Related Post

0 commenti

Invia un commento

Virtualizzazione

Linux

Microsoft

Apple

Backup

Database

Security

Automazione
